House Plans & Drawings
Detailed architectural plans and technical drawings of the villa, including all floors and outdoor spaces
180m²
Total Living Space
3
Independent Apartments
2,500m²
Total Plot Size
PDF
Downloadable Plans

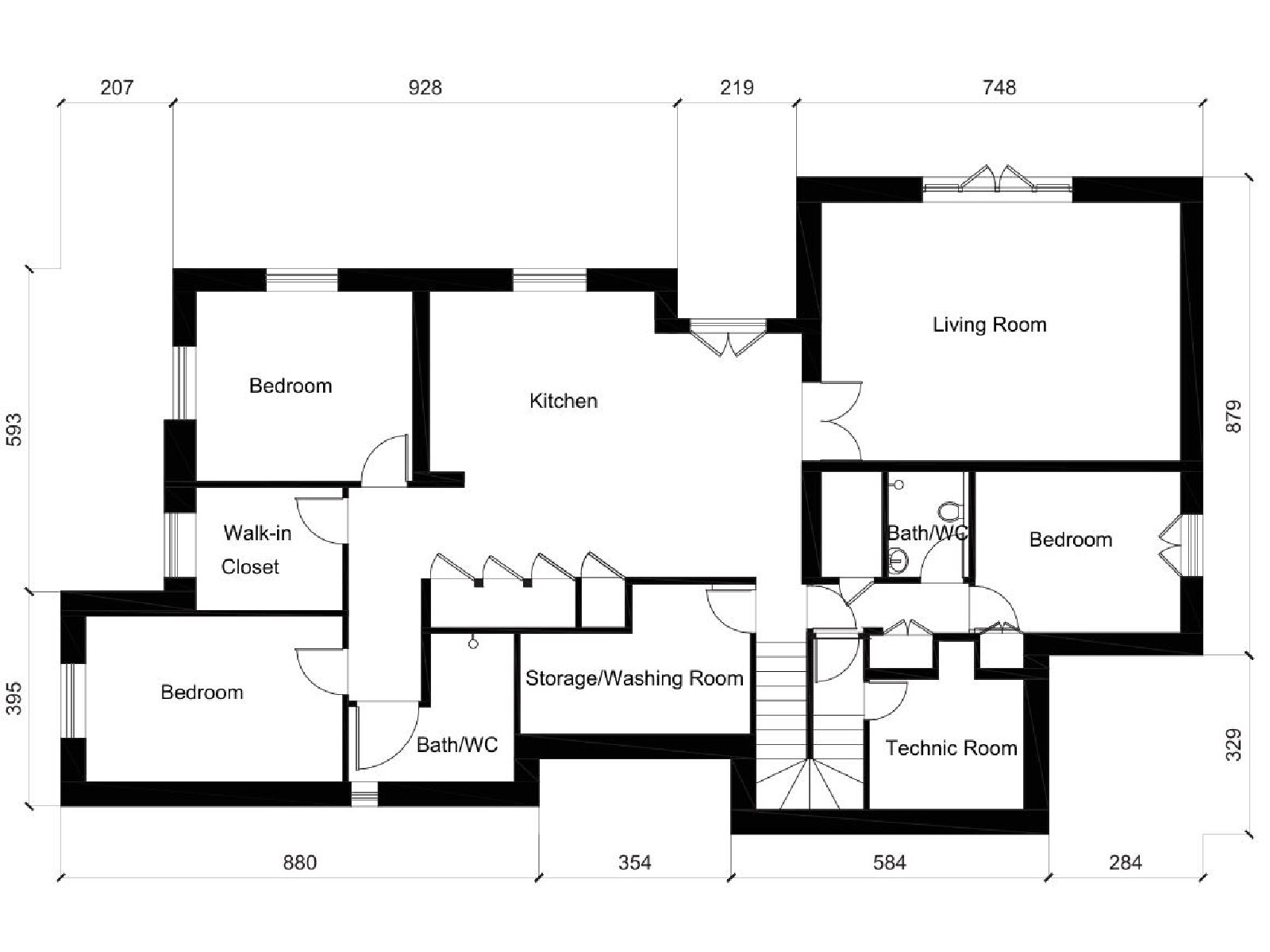

Ground Floor Plan
Main living areas, kitchen, guest bedroom and facilities
95m²
Room Details
- Living room 45m²
- Kitchen 20m²
- Bedroom 15m²
- Bathroom
- WC
- Laundry
Upper Floor - Main House
Master suite and additional bedrooms
85m²
Room Details
- Master suite 25m²
- Bedroom 18m²
- Bedroom 16m²
- Bedroom 14m²
- 2 Bathrooms
Upper Floor - Apartment A
Independent apartment in east wing
55m²
Room Details
- Living area 35m²
- Kitchenette 12m²
- Bedroom 20m²
- Bathroom
- Balcony 8m²
Upper Floor - Apartment B
Independent apartment in west wing
62m²
Room Details
- Living area 40m²
- Kitchen 15m²
- Bedroom 22m²
- Bathroom
- Terrace 12m²
Upper Floor - Apartment C
Independent apartment in south wing
58m²
Room Details
- Living area 38m²
- Kitchen 14m²
- Bedroom 18m²
- Bathroom
- Terrace 15m²
Site Plan & Grounds
Complete property layout with garden and pool
2,500m²
Room Details
- Swimming pool 12x6m
- Pool house 15m²
- Garage 40m²
- Terraces
- Garden
- Parking
Complete Plan Package
Download all architectural plans, technical drawings, and specifications in one comprehensive PDF package.
